| Feature | Description |
|---|---|
| With room temperature controller | Yes |
| Function | For switch, push button, dimmer, shutter, and room thermostat functions; help function button can be activated; with valve protection function |
| Timers | With room heat timer and 2-week timer functions |
| Operating mode | Additional function, standby, night, and frost/heat protection mode |
| Compatibility | Extension unit |
| Extension unit | Extension unit for light scene push button |
| With LED display | Yes |
| Dim (dimming) | Area dimming |
| Number of buttons | 3 |
| Operation | Single button operation for switching, pressing, shutters, and dimming; parameterizable shutter concept |
| Indicator / Display | Operating mode, control lock, room/outdoor temperature, time, LC display |
| Push-Button | With 2 additional indicator buttons |
| Coding | With button lock function |
| Rail mounting width | 0 module |
| Height | 119.6 mm |
| Width | 88.5 mm |
| Measurement | 1 and 2 byte transmitter: dimming, position, brightness, heat |
| LED control | Blue operating LED, 6 white status LEDs |
| Data bus connection unit | Coupling unit for plus plaster-mounted installation |
| Settings | Presence button, display, and button operation can be parameterized |
| Programming | Programmable with ETS2 (V1.2a+), ETS3 |
| Box | For installation in single wall boxes |
| Product type | B.IQ |
| Heating mode | Heating/cooling with or without auxiliary step |
| Control | 2 control circuits; PI or 2-point control; single room presets |
| Software update | With flash-controller technology |
| REACH compliant | Yes |
| RoHS compliant | Yes |
| Protection | Protected against removal |
| Alarm | Alarm telegram when data bus connection is interrupted (1bit, 1-2 byte) |
| Operating temperature | -5…45 °C |
| Product family | Push buttons |
| Version | 2.6 |
| Main design line | KNX - Berker B.IQ |
| Secondary design lines | KNX, B.IQ |
B.IQ
B.IQ

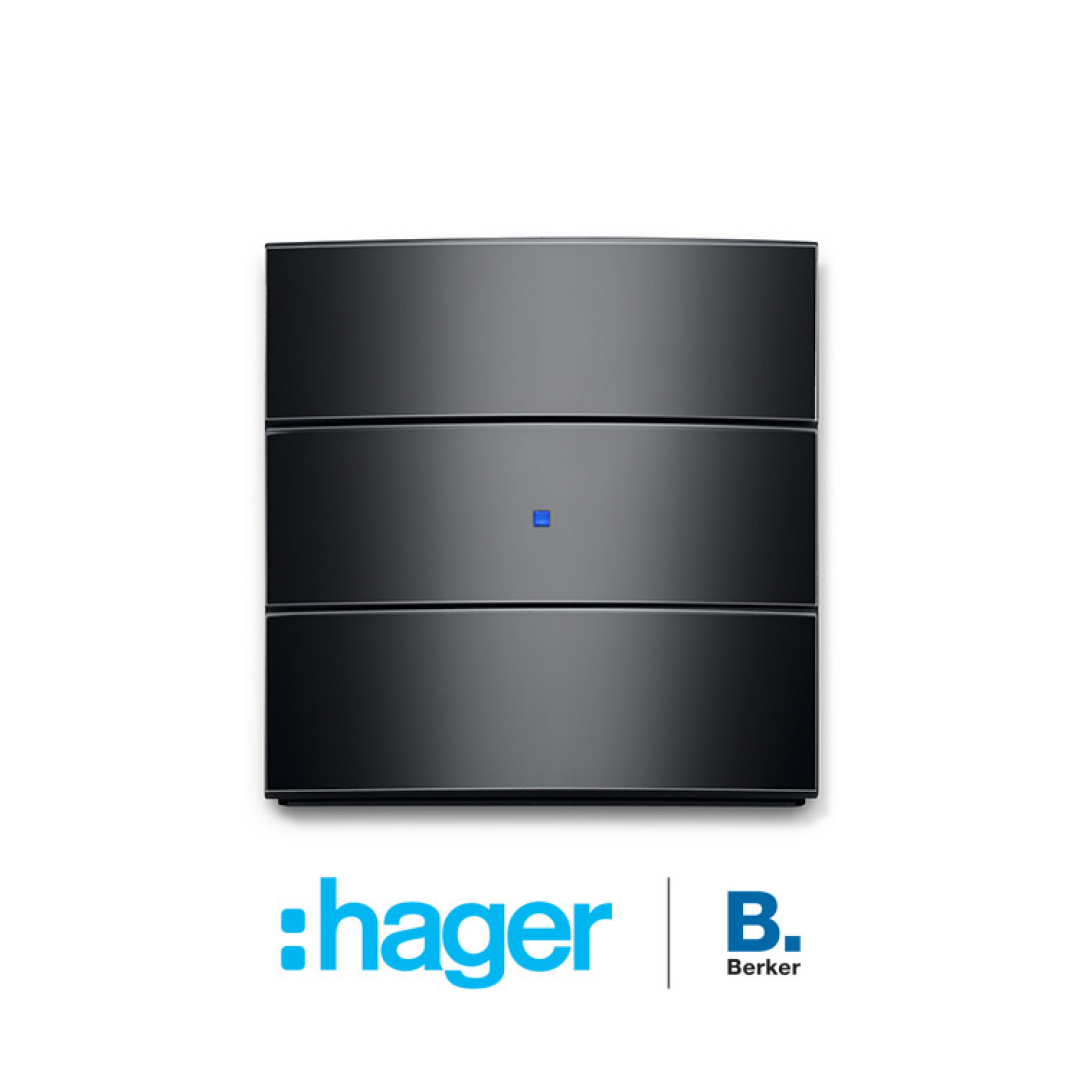

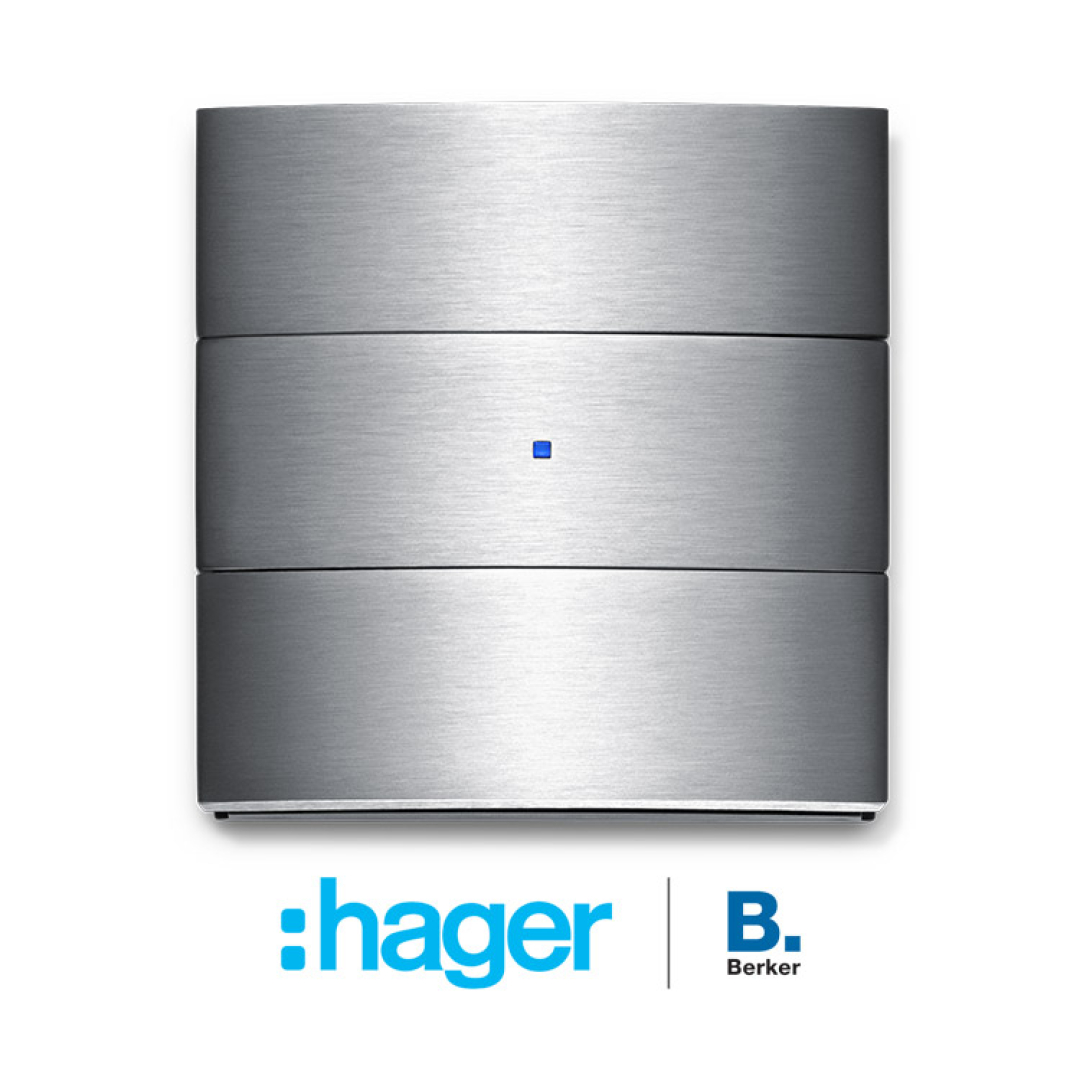

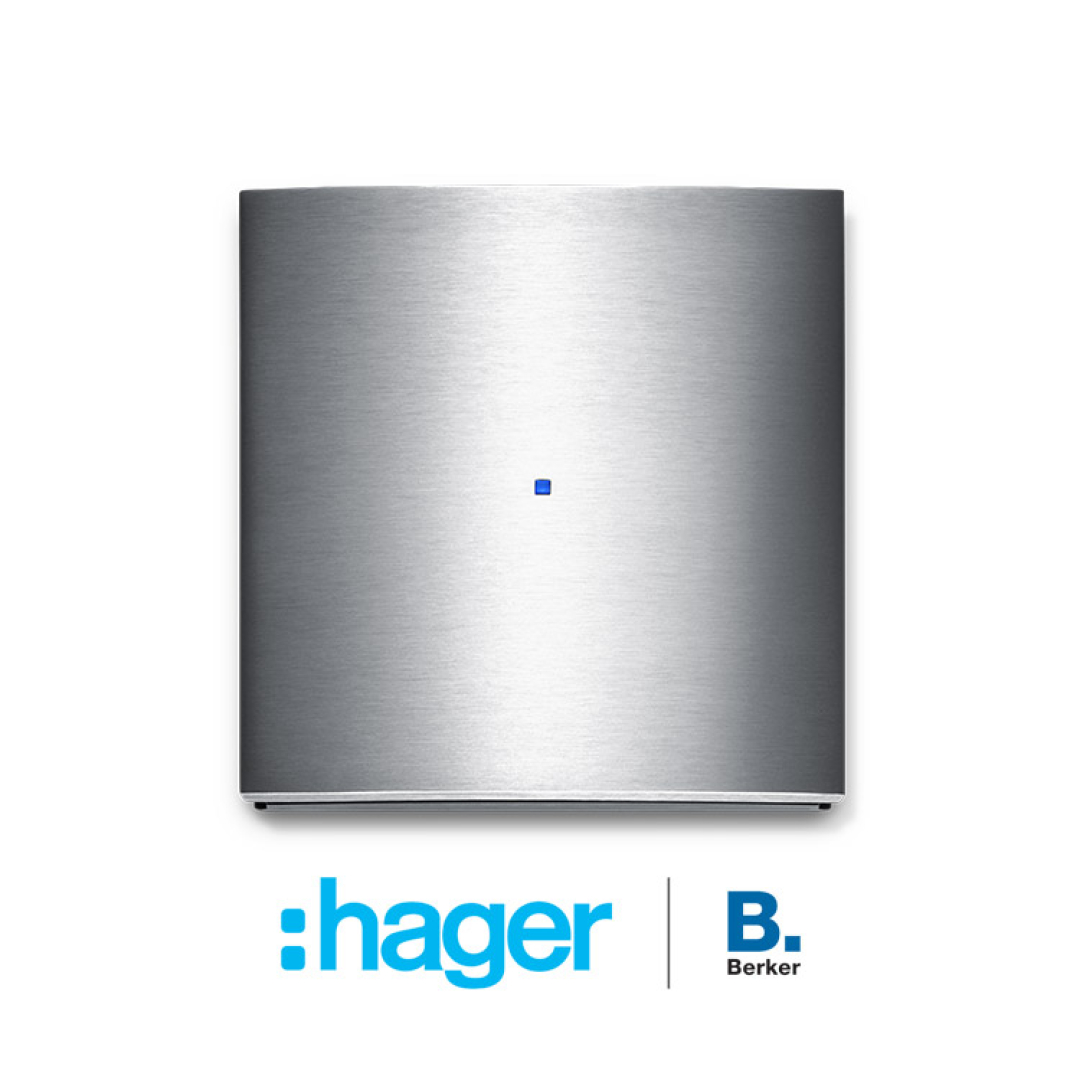

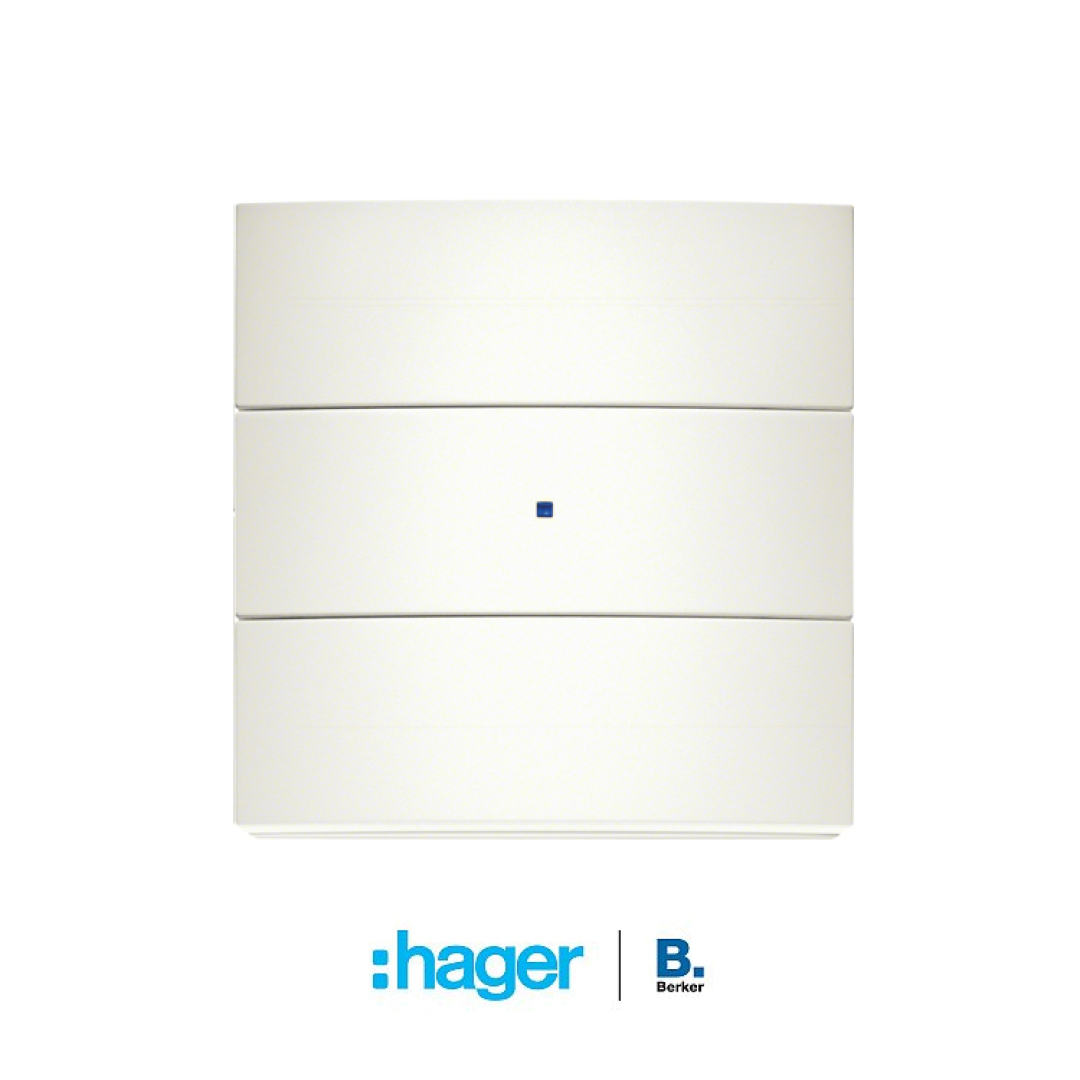

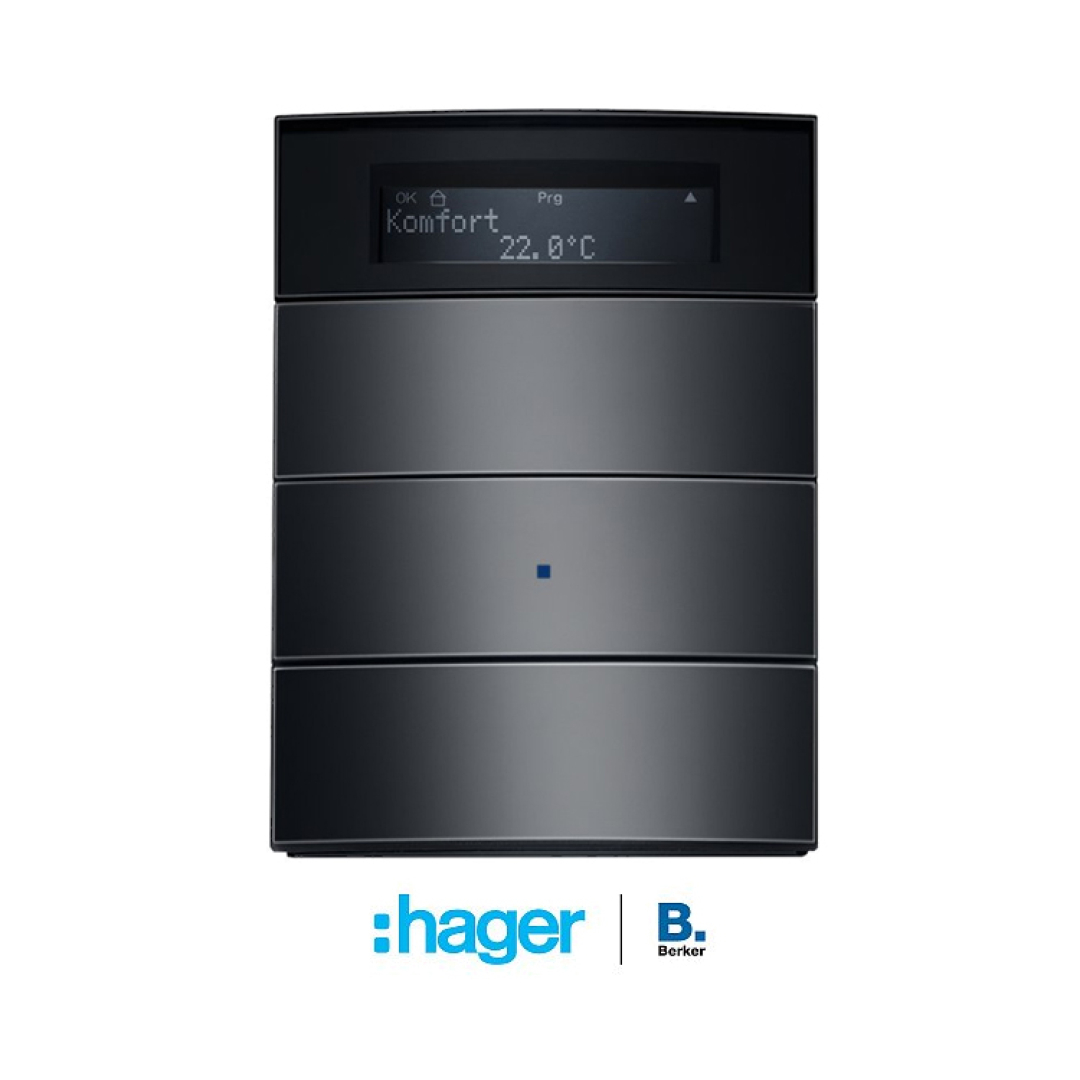

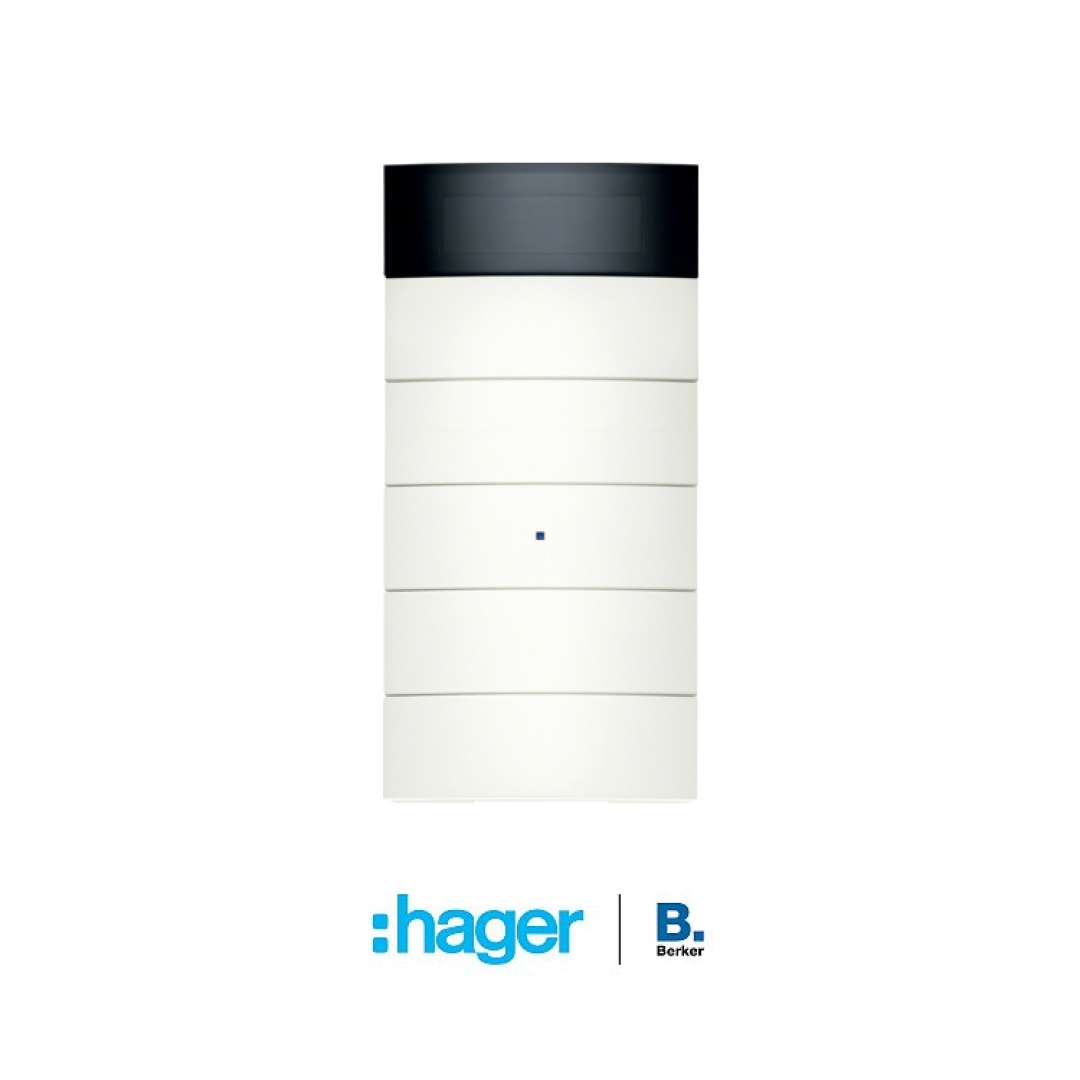

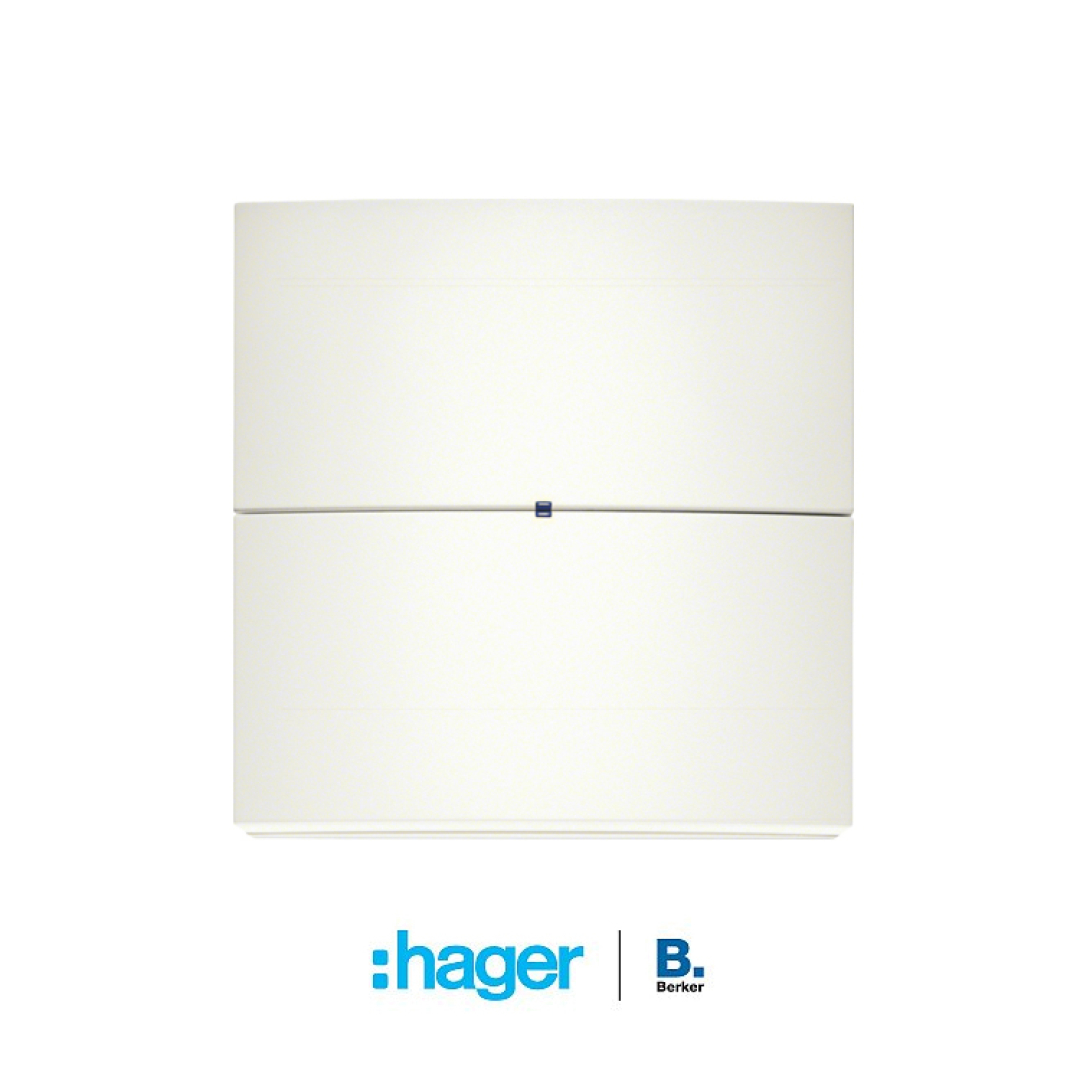

Berker B.IQ is a premium KNX switch series designed for KNX smart building systems, standing out with its elegant design and multifunctional structure. Offering a frameless look with material options such as glass, stainless steel, and aluminum, B.IQ adds both aesthetics and functionality to any space.

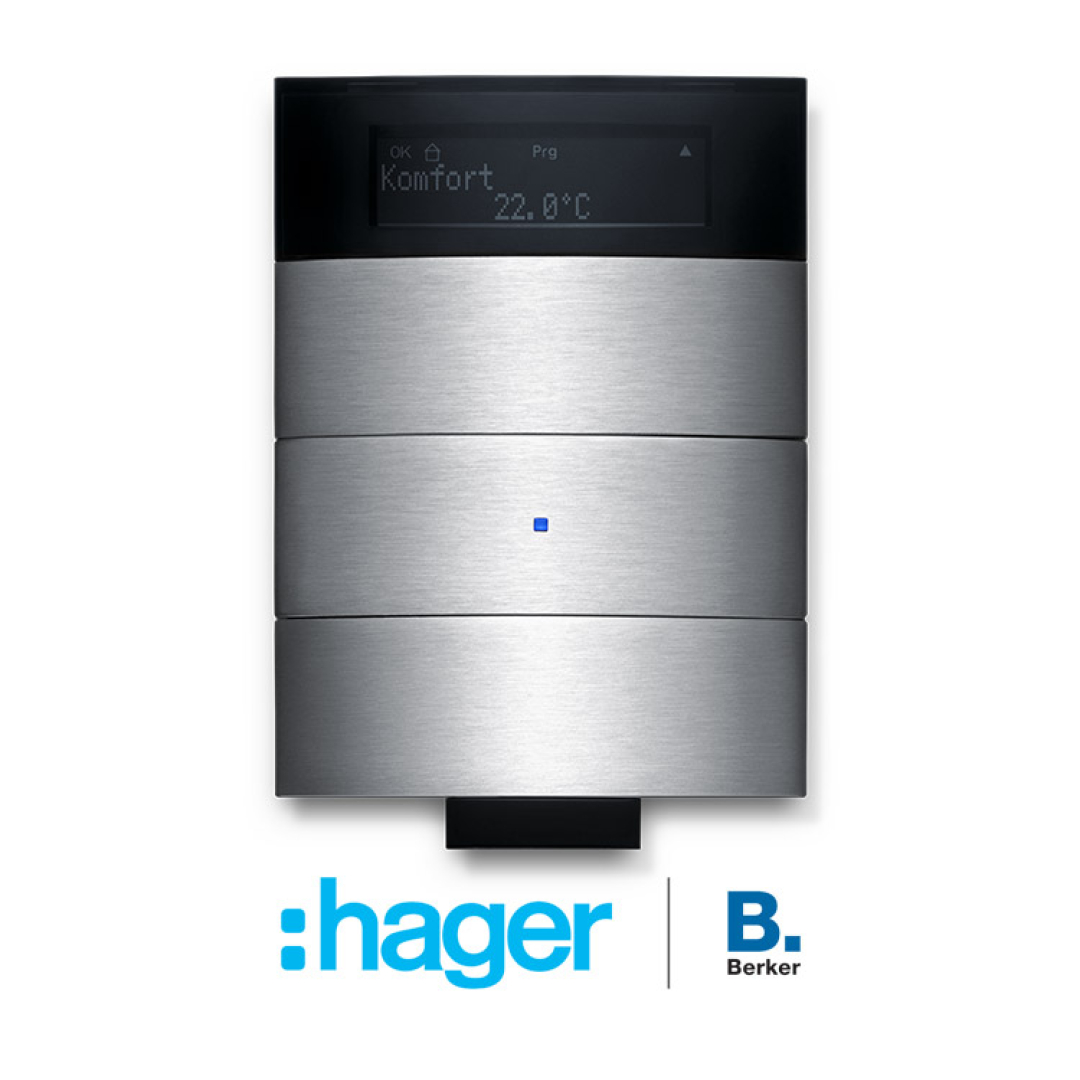

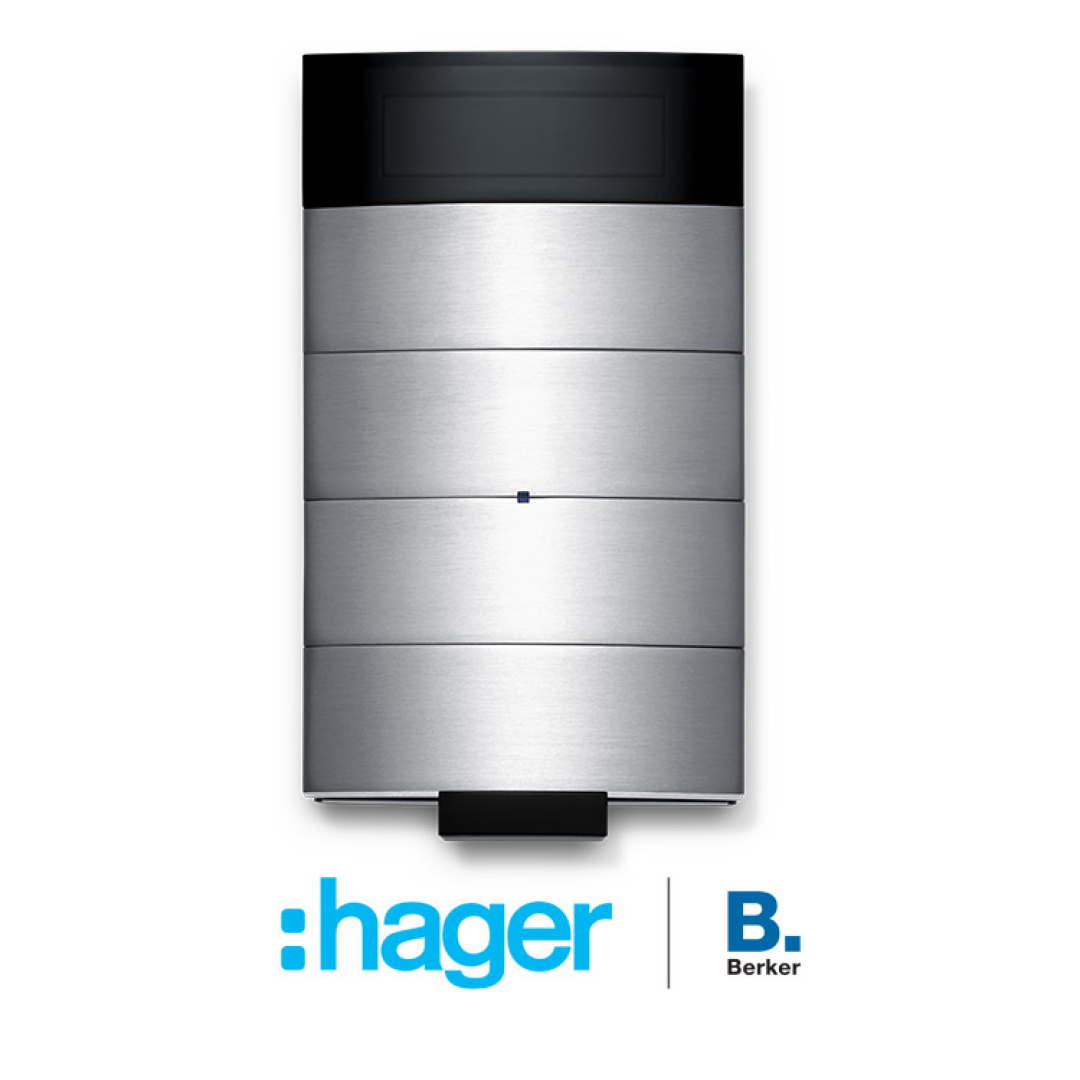

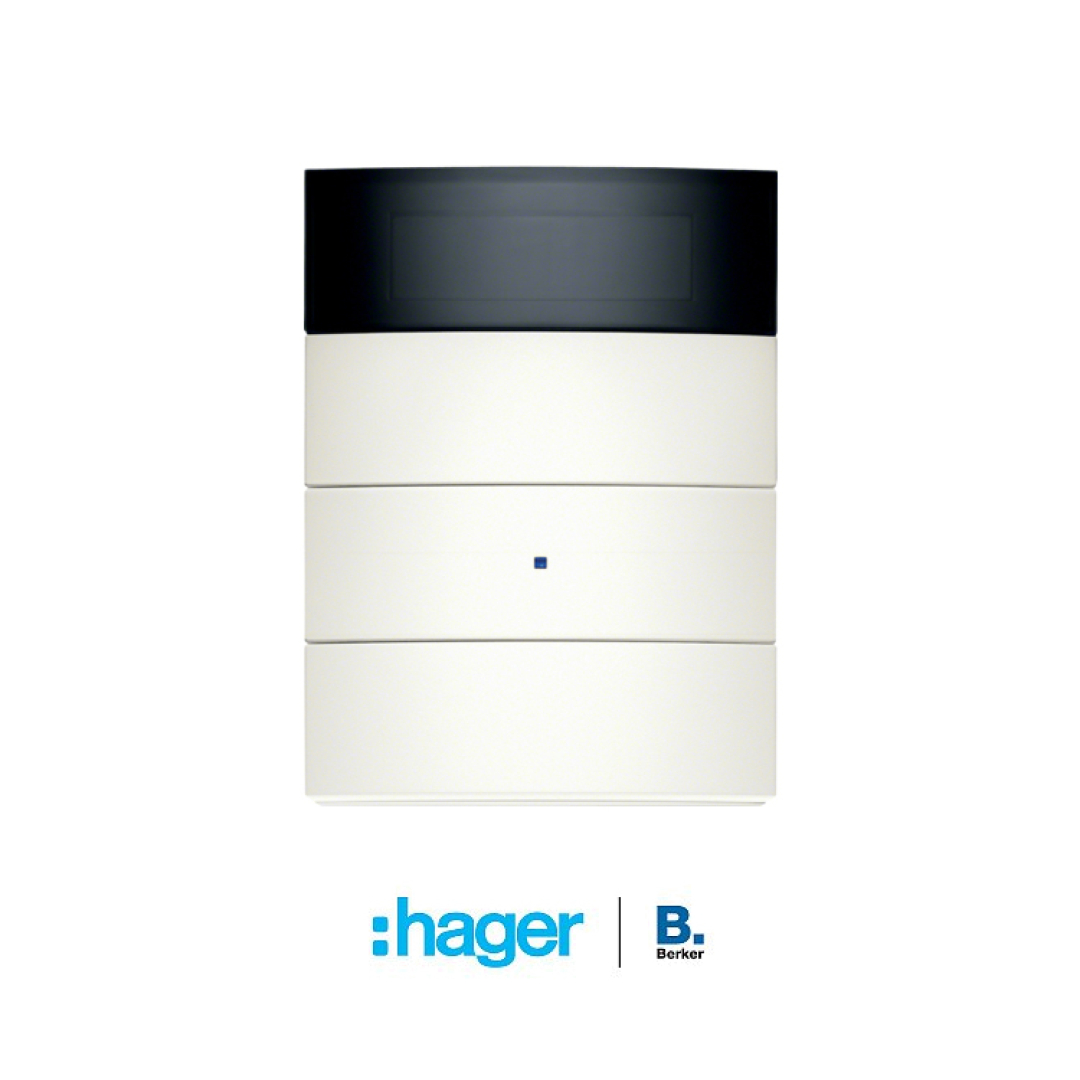

With its integrated digital thermostat, you can manage heating and cooling directly within your KNX applications. White status LEDs and blue operation LEDs provide a user-friendly interface that harmonizes perfectly with modern interiors.

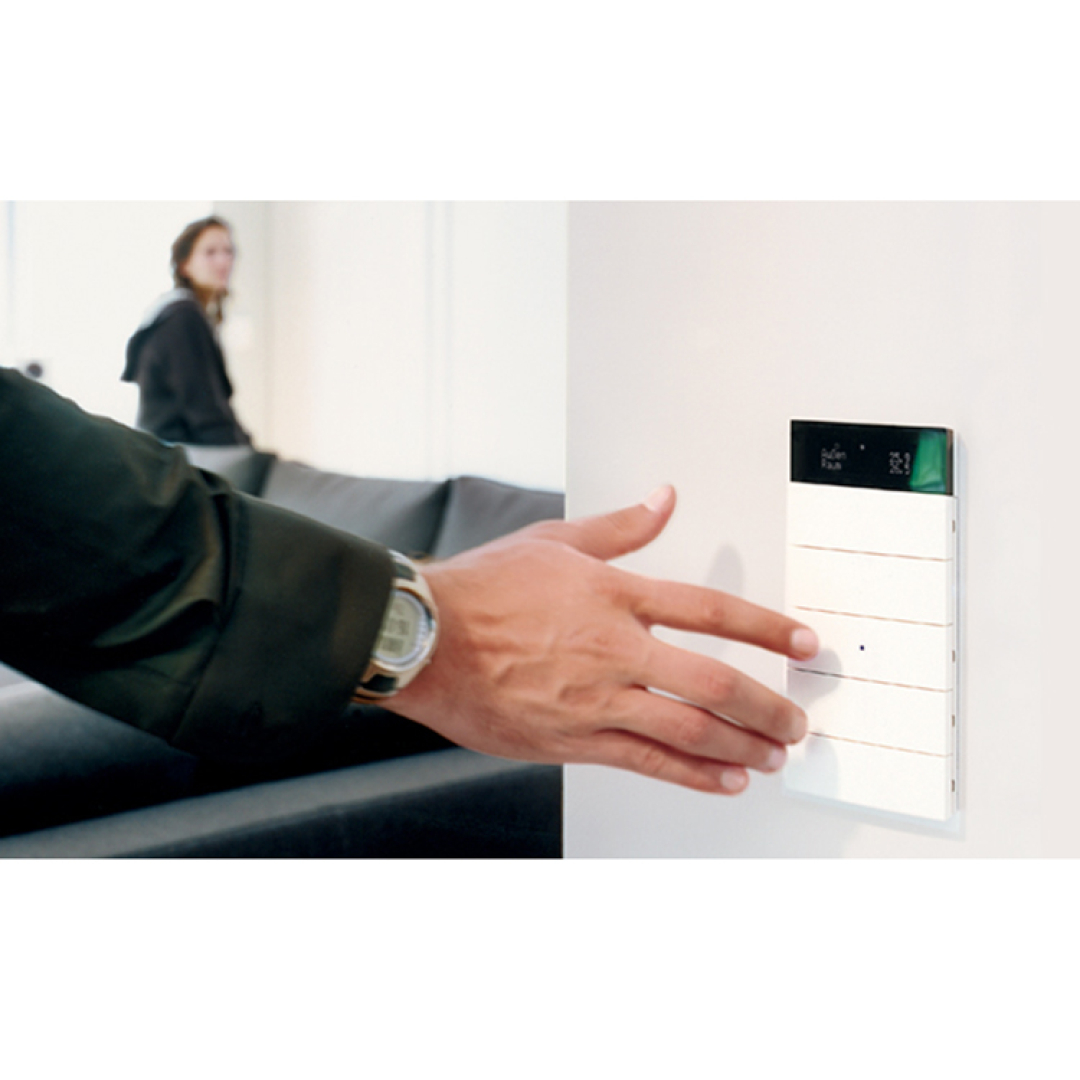

Berker B.IQ KNX buttons let you control numerous functions—lighting, blinds/shades, music systems, and HVAC—at the touch of a single button. Designed for smart living spaces, this product’s outstanding design has earned international awards.
Berker B.IQ combines aesthetic elegance with glass and metal design, while its integrated thermostat, LED display, and multifunctional KNX control deliver comfort, technology, and energy efficiency to your living spaces—at the touch of a button.
The captivating design, with its durable and safe structure, is the strongest expression of our commitment to design, quality, and innovation.
