| Feature | Description |
|---|---|
| Speaker Type | 3-Way Bass Reflex Bookshelf |
| Tweeter | 1” Soft Dome, extended waveguide design |
| Midrange | 4” Aluminum, neodymium magnet and large coil |
| Woofer | 6.5” Compound Curvature Aluminum |
| Frequency Response | 41 Hz – 35,000 Hz |
| Crossover Frequency | 260 Hz / 1800 Hz |
| Nominal Impedance | 6 Ohm |
| Sensitivity | 85 dB @ 2.83V / 1m |
| Maximum Power Input | 140 Watt |
| Cabinet Construction | CARB2 Certified MDF |
| Port | Dual Flared Slot |

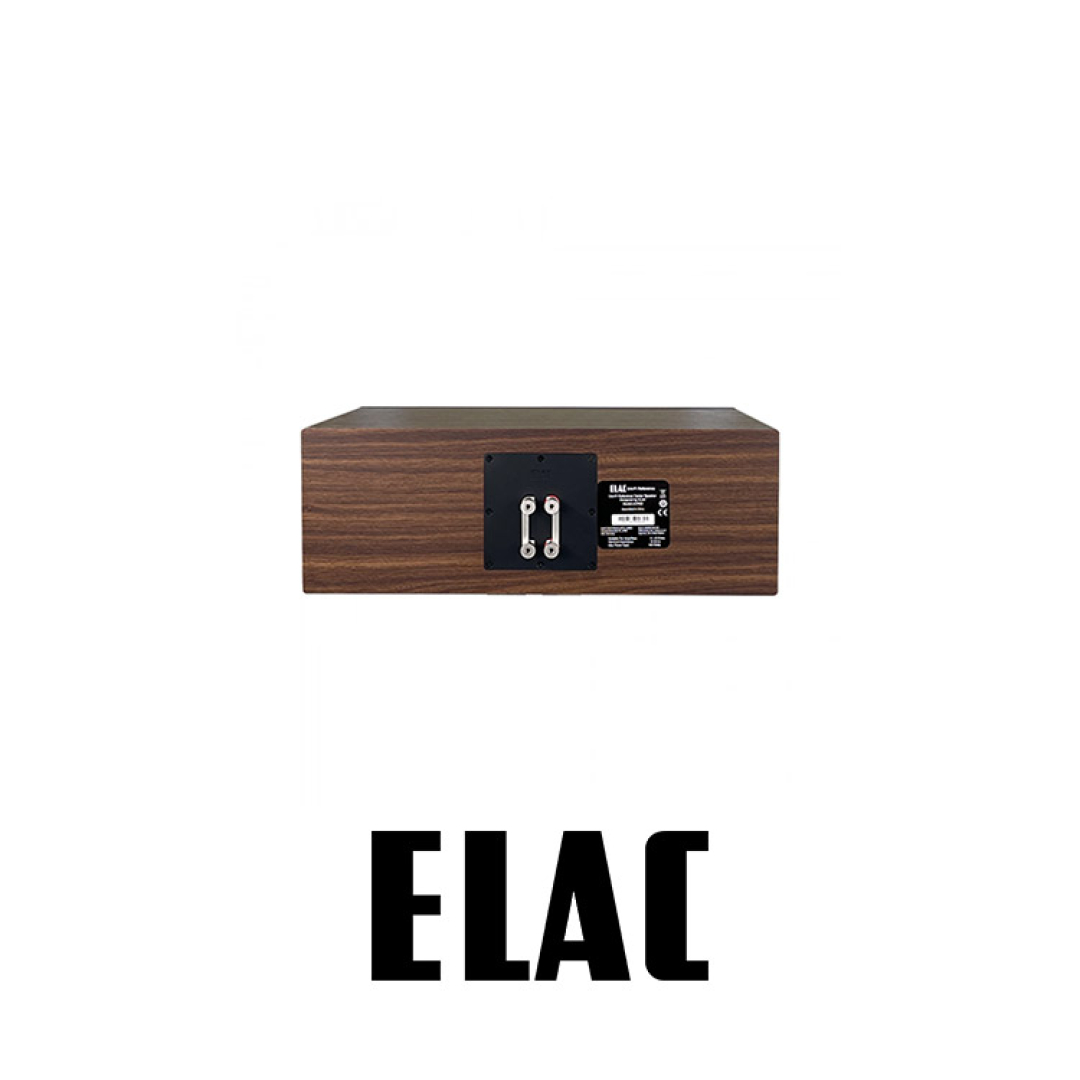

| Connections | Bi-Wire 5-Way Metal Terminals |
| Dimensions (WxHxD) | 208 × 359 × 334 mm |
| Weight | 10.7 kg / each |
| Finish Options | Satin White / Oak Side Panel or Satin Black / Walnut Side Panel |
UCR52
UCR52

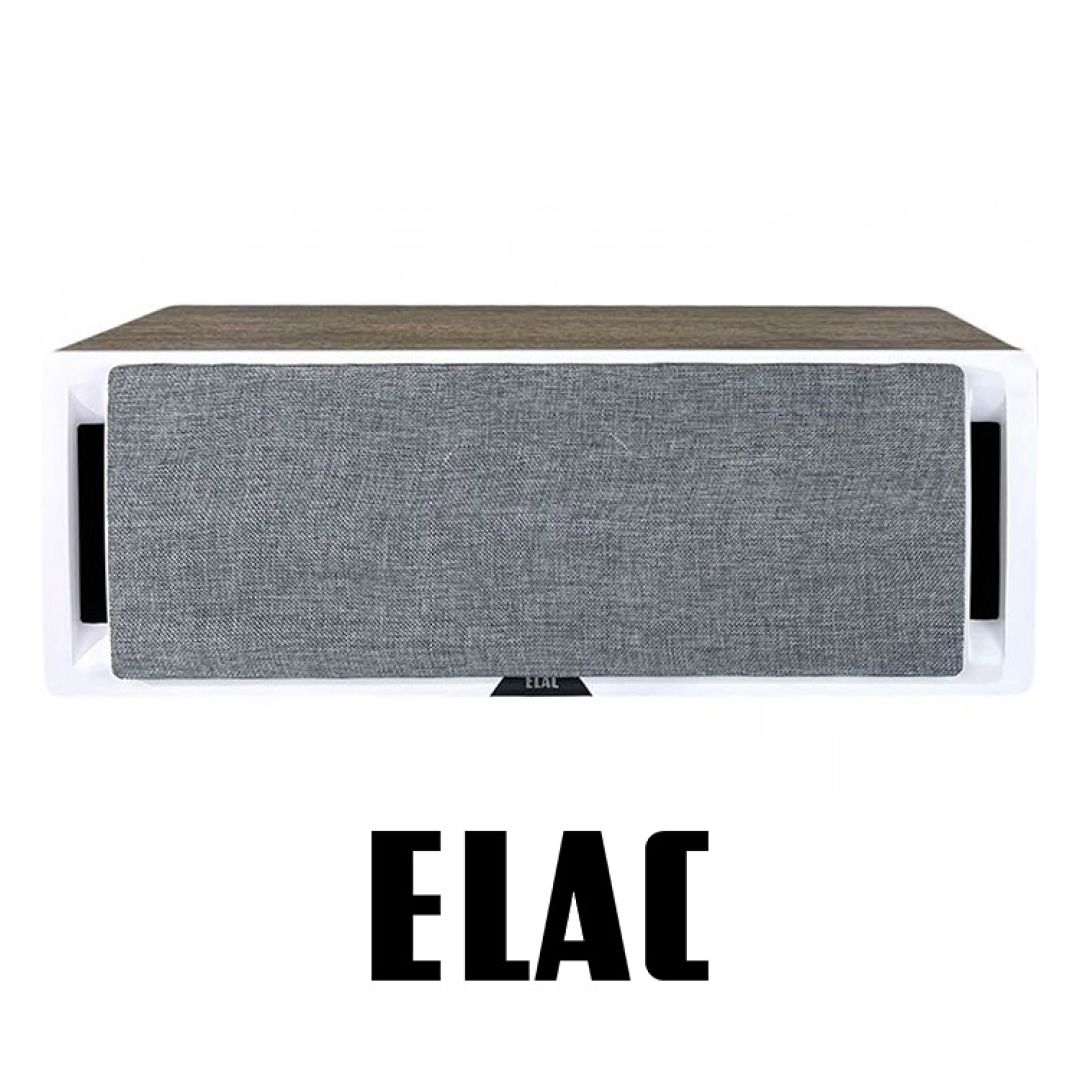

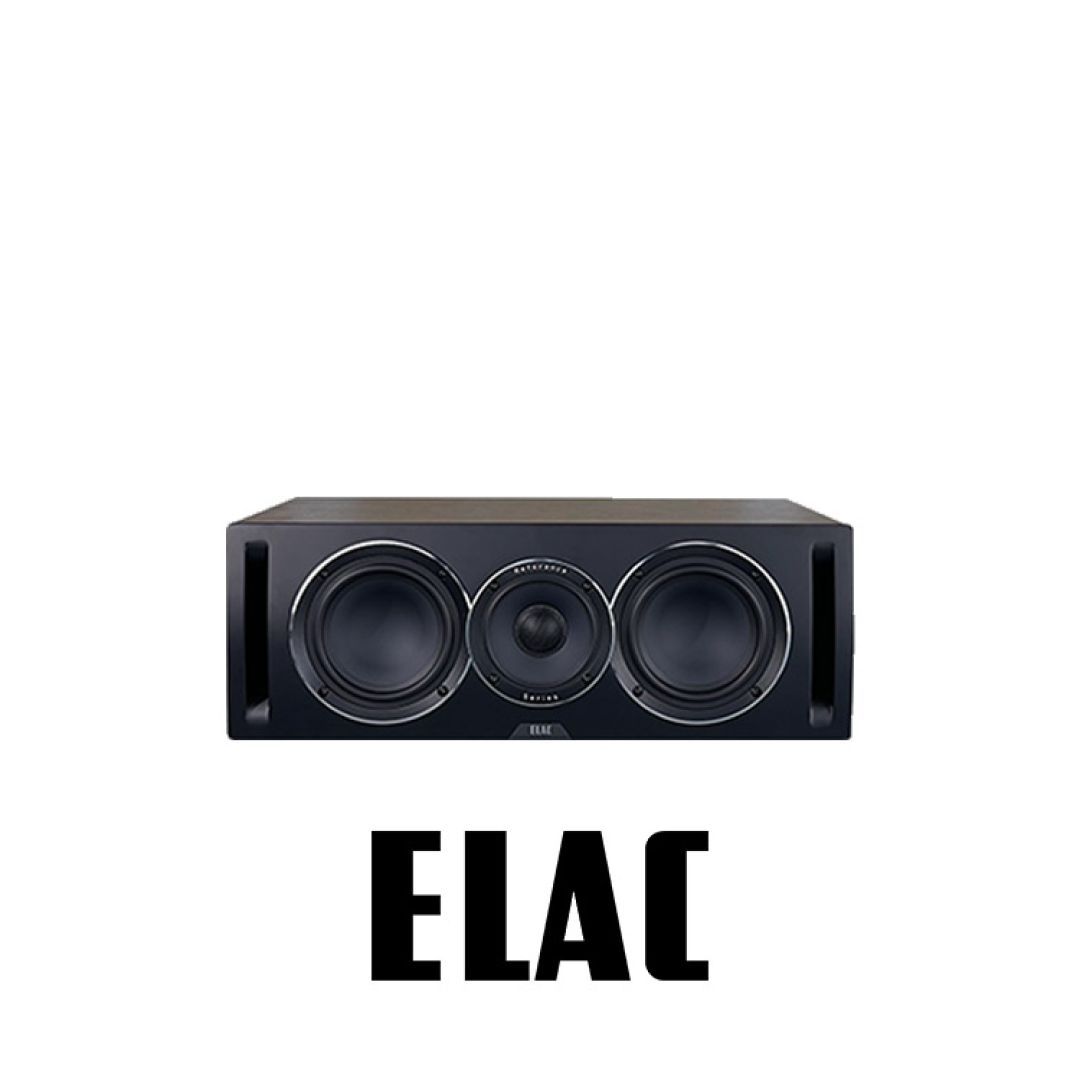

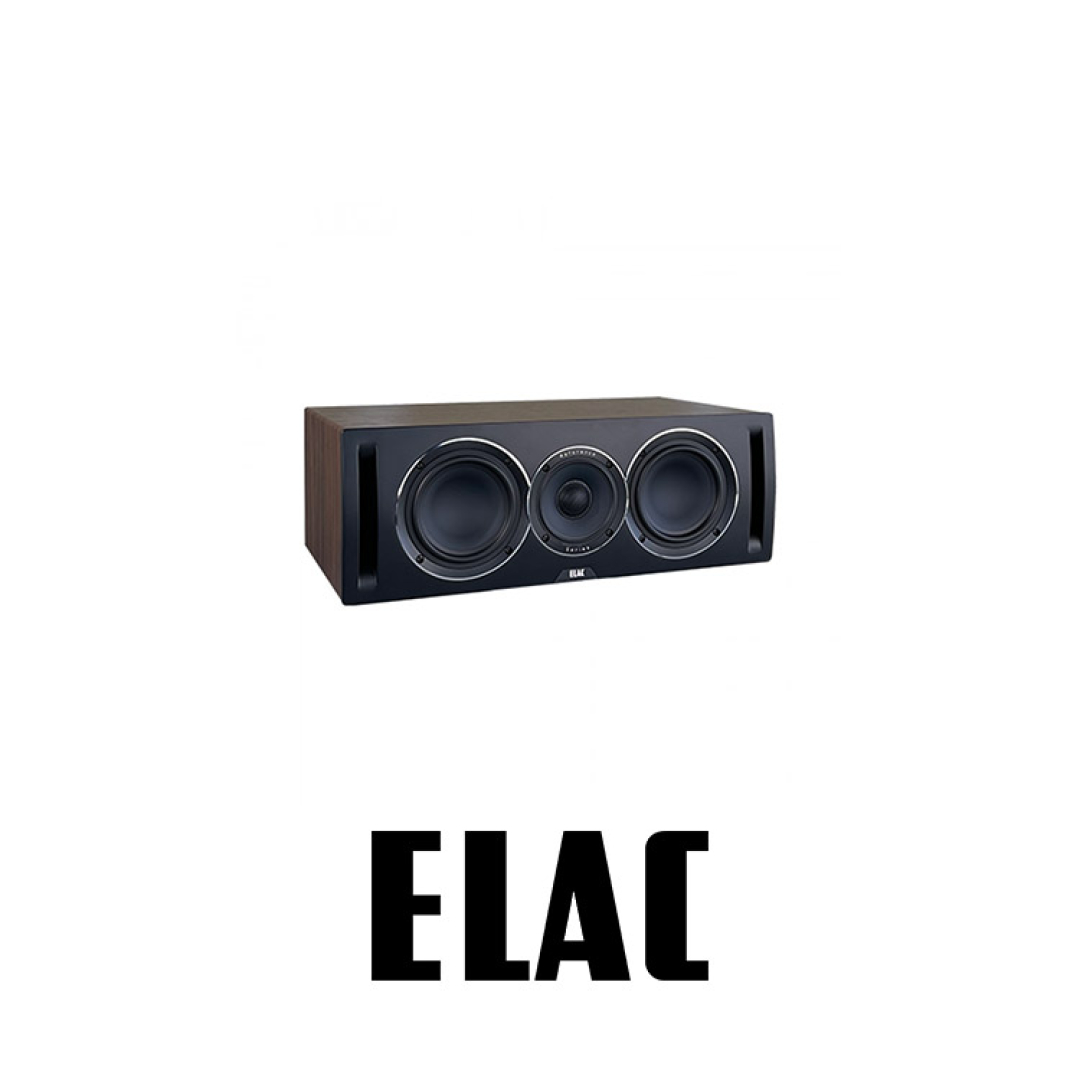

The ELAC UniFi Reference UCR52 Center Speaker stands out as an essential center speaker for home cinema systems, excelling in dialogue-focused content. Thanks to its 3-way driver system, treble, mid, and bass frequencies are processed separately, ensuring clarity and accuracy. The newly developed concentric tweeter and aluminum midrange driver deliver sound details flawlessly.
With its dual flared slot port structure, noise is reduced while bass performance is enhanced, and the full surround bracing system minimizes cabinet resonances. The aesthetically pleasing UniFi Reference UCR52, available in premium walnut and oak panel options, adds both beauty and power to your cinema experience.
-
Detailed dialogue performance with a 3-way driver system
-
Treble and mid-frequency integration with concentric driver technology
-
Powerful and controlled bass sounds with dual slot port
Features
Technical Specifications
Cast Chassis Woofer
Aluminum woofers and full surround bracketing with low distortion
