| Feature | Description |
|---|---|
| Speaker Type | 3-Way, Bass Reflex Floor Type |
| Tweeter | 1" Soft Dome (Waveguide supported) |
| Woofer | 3 x 5-1/4” Aramid Fiber |
| Frequency Response | 42 Hz - 35,000 Hz |
| Crossover Frequency | 90 Hz / 2200 Hz |
| Maximum Power Input | 140 Watts |
| Sensitivity | 87 dB @ 2.83V / 1m |
| Nominal Impedance | 6 Ohm |
| Cabinet Construction | CARB2 Certified MDF |

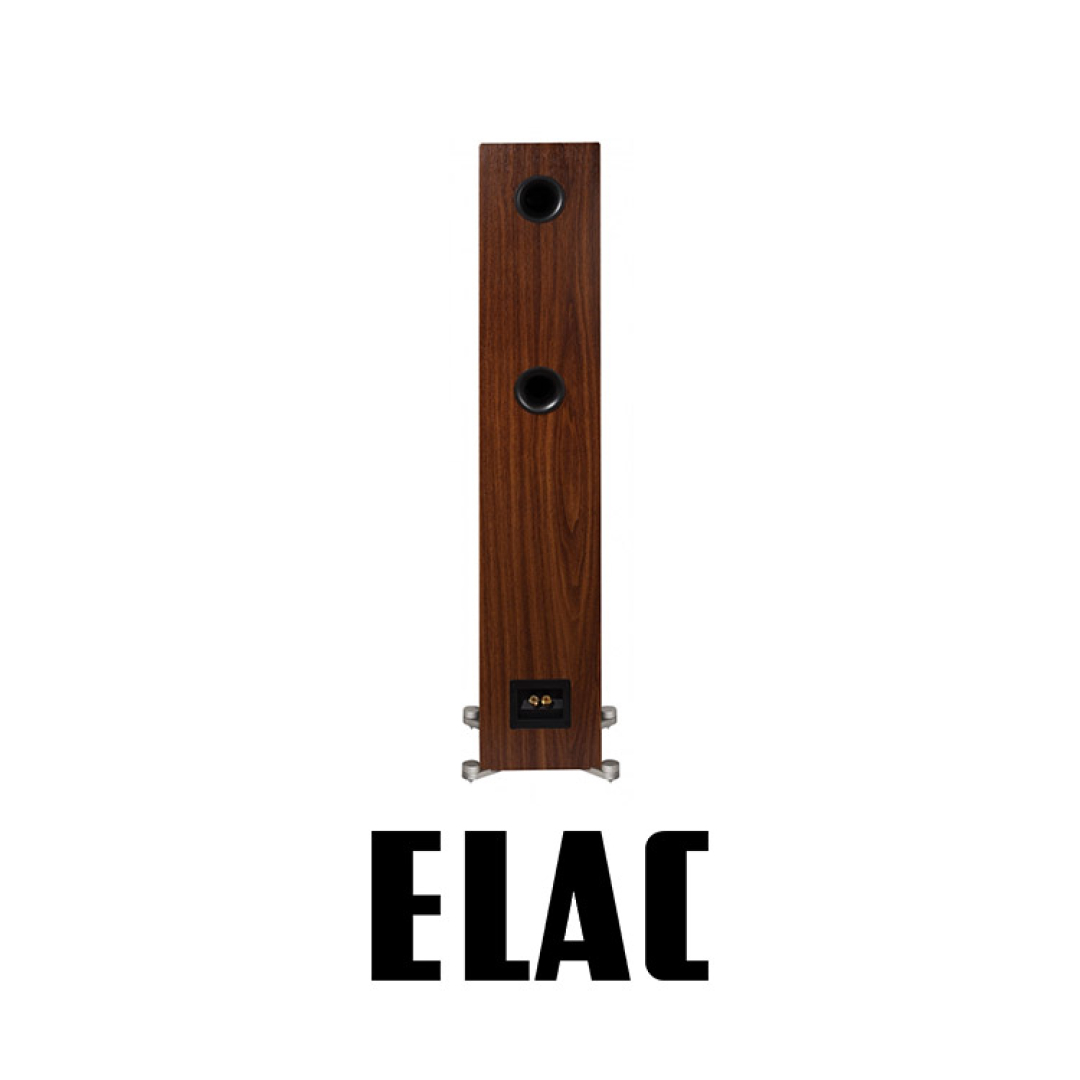

| Port | 3 x Dual Flared Slot Port |
| Connections | 5-Way Metal Binding Posts |
| Dimensions (HxWxD) | 1016 × 185 × 242 mm |
| Weight | 16.7 kg |
| Finish Options | White Front Panel / Oak Cabinet or Black Front Panel / Walnut Cabinet |
DFR52
DFR52

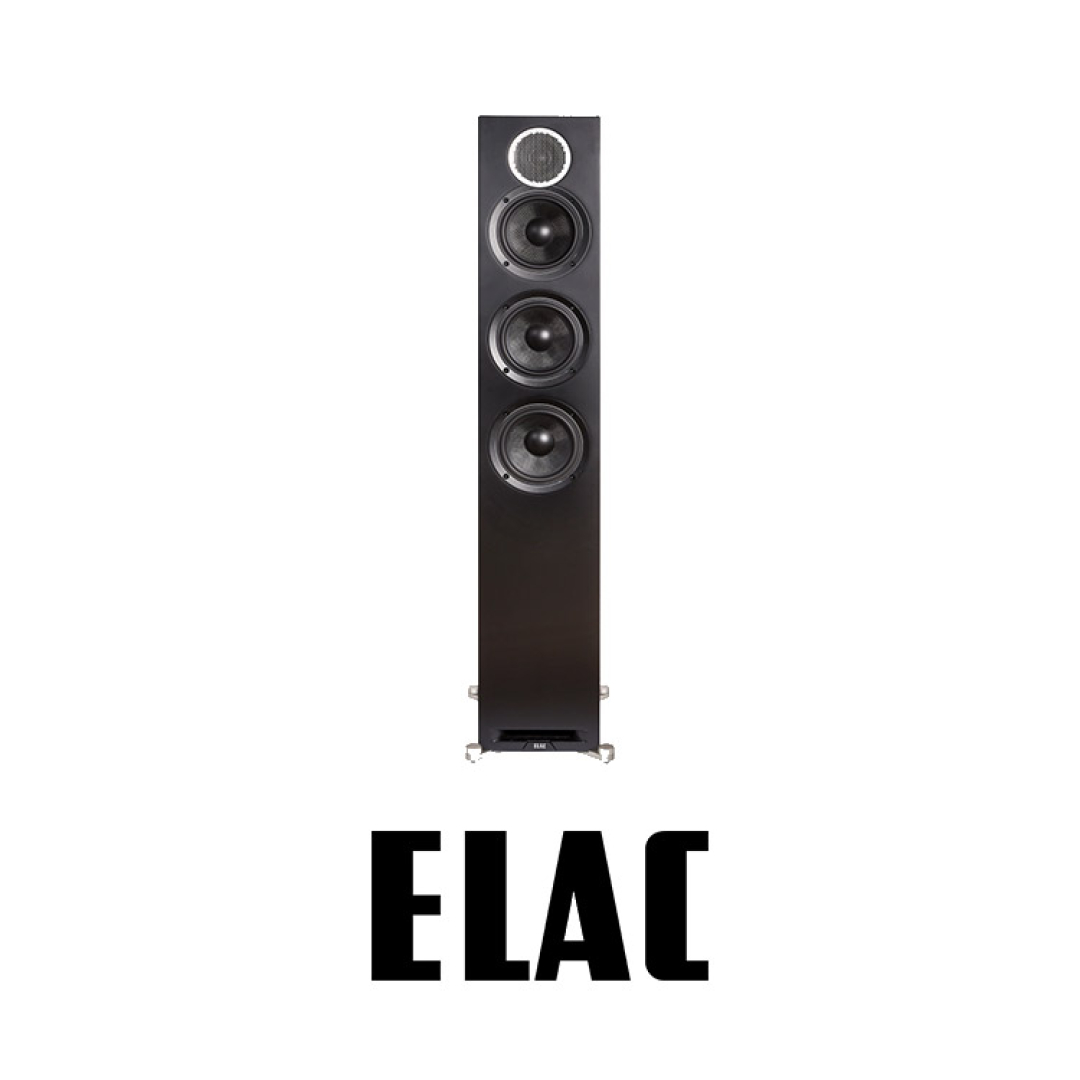

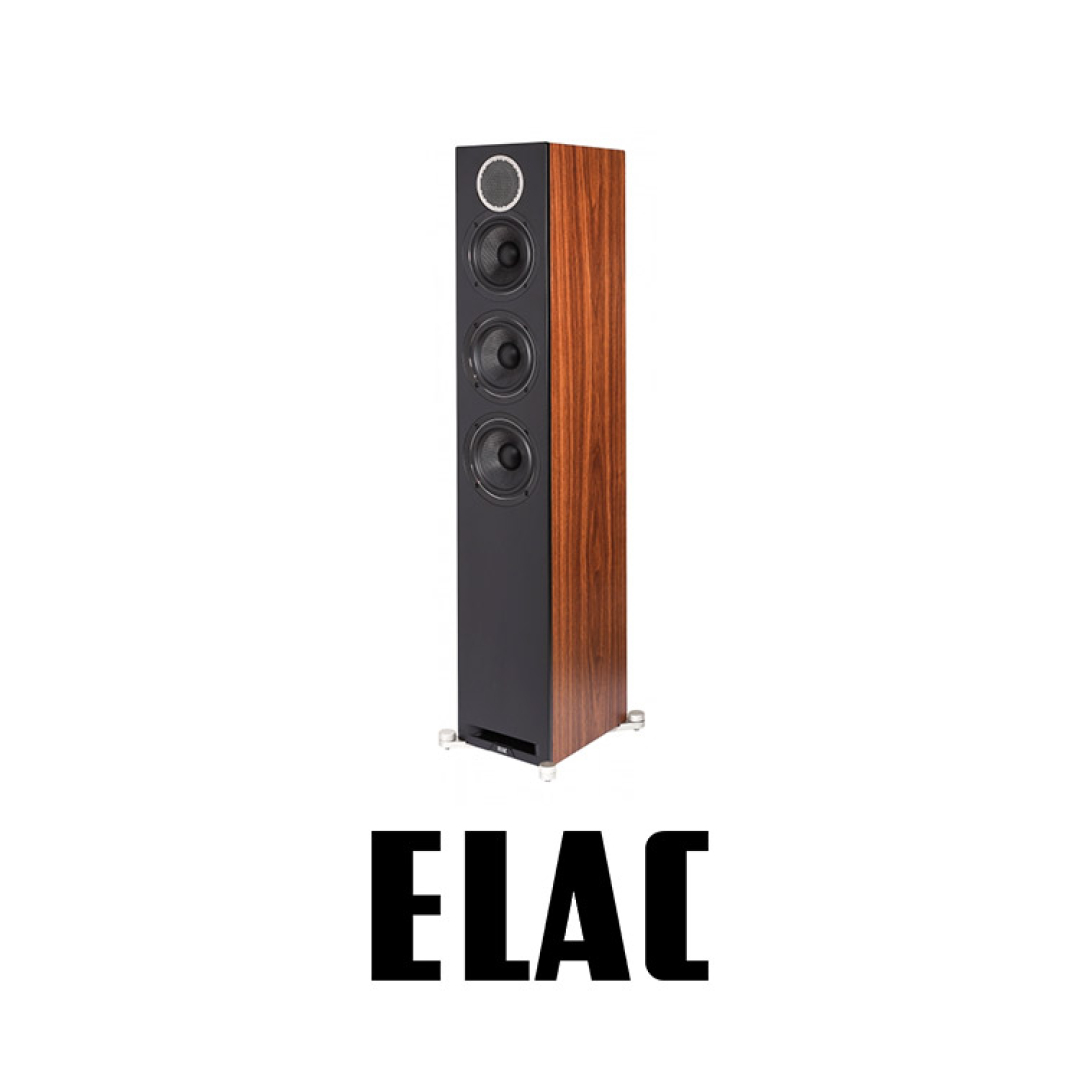

The ELAC Debut Reference DFR52 floor-standing speaker combines extraordinary acoustic performance with elegant design, making it a top choice for home theater systems and hi-fi enthusiasts. The 1” soft dome tweeter featured in this model offers a wider and more precise high-frequency response thanks to its special waveguide and more open grille design. This ensures clearer communication of dialogue and details.
Three 5-1/4” aramid fiber woofers provide powerful, controlled, and low-distortion bass production due to their high stiffness and damping. The improved cast chassis minimizes vibrations, while the cabinet's environmental bracing structure prevents sound distortions. The DFR52 is a performance beast that does not compromise on aesthetics, available in elegant walnut/black or oak/white color options.
-
High-frequency separation and clarity with a 3-way design
-
Powerful and deep bass with three aramid fiber woofers
-
Minimum vibration, maximum efficiency with improved cabinet and port design
Cast Woofer
Powerful and clear sound production with aramid fiber woofers
Features
Technical Specifications
Cabinet

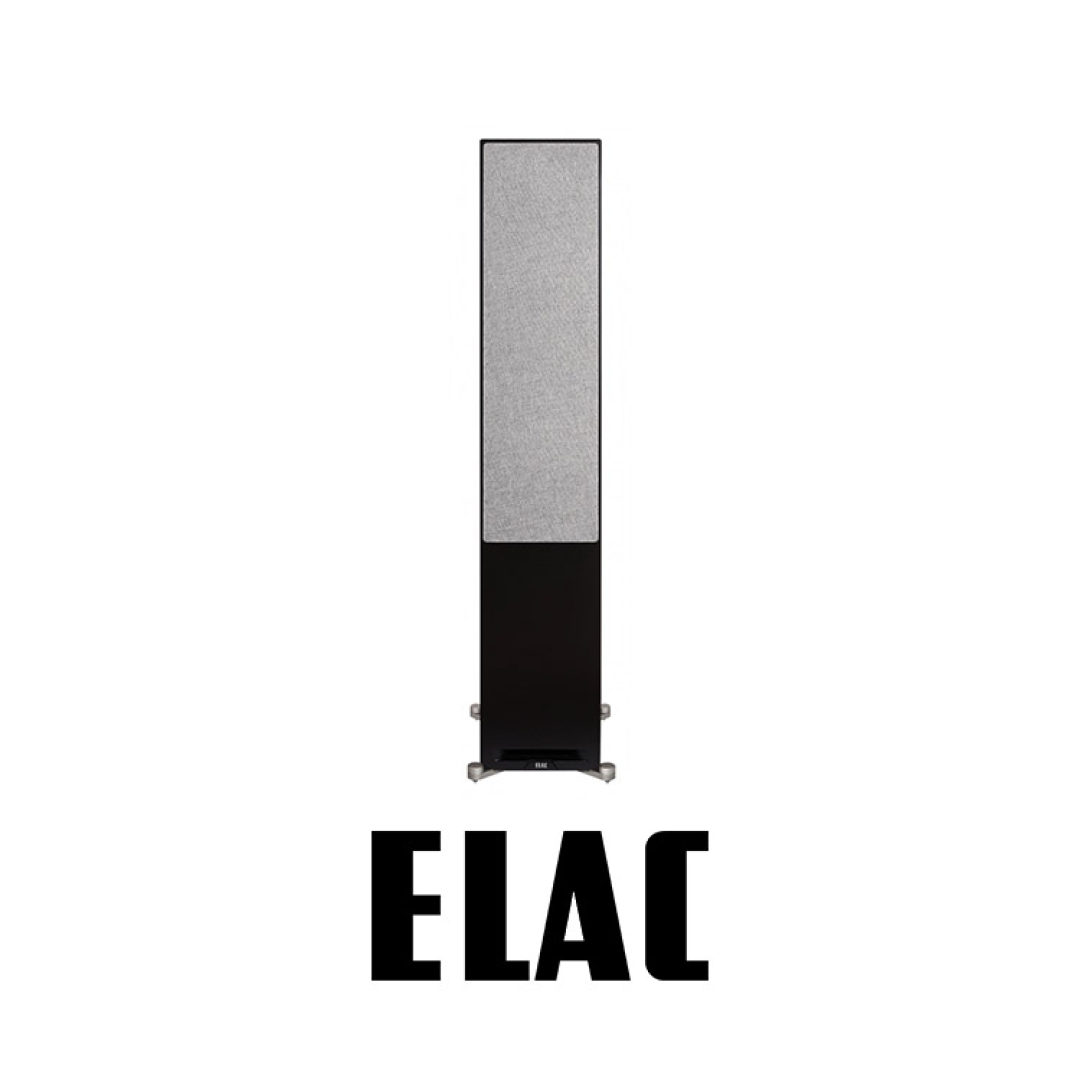

Advanced waveguide and open grille for high treble performance
