| Feature | Description |
|---|---|
| Speaker Type | 2-Way, Bass Reflex Center Speaker |
| Tweeter | 1" Soft Dome (Waveguide supported) |
| Woofer | 2 x 5-1/4” Aramid Fiber |
| Frequency Response | 55 Hz - 35,000 Hz |
| Crossover Frequency | 2200 Hz |
| Maximum Power Input | 120 Watts |
| Sensitivity | 87 dB @ 2.83V / 1m |
| Nominal Impedance | 8 Ohm |
| Cabinet Construction | CARB2 Certified MDF |
| Port | 2 × Dual Flared Slot Port |
| Connections | 5-Way Metal Binding Posts |
| Dimensions (HxWxD) | 185 × 527 × 242 mm |
| Weight | 10.1 kg |
| Finish Options | White Front Panel / Oak Cabinet or Black Front Panel / Walnut Cabinet |
DCR52
DCR52

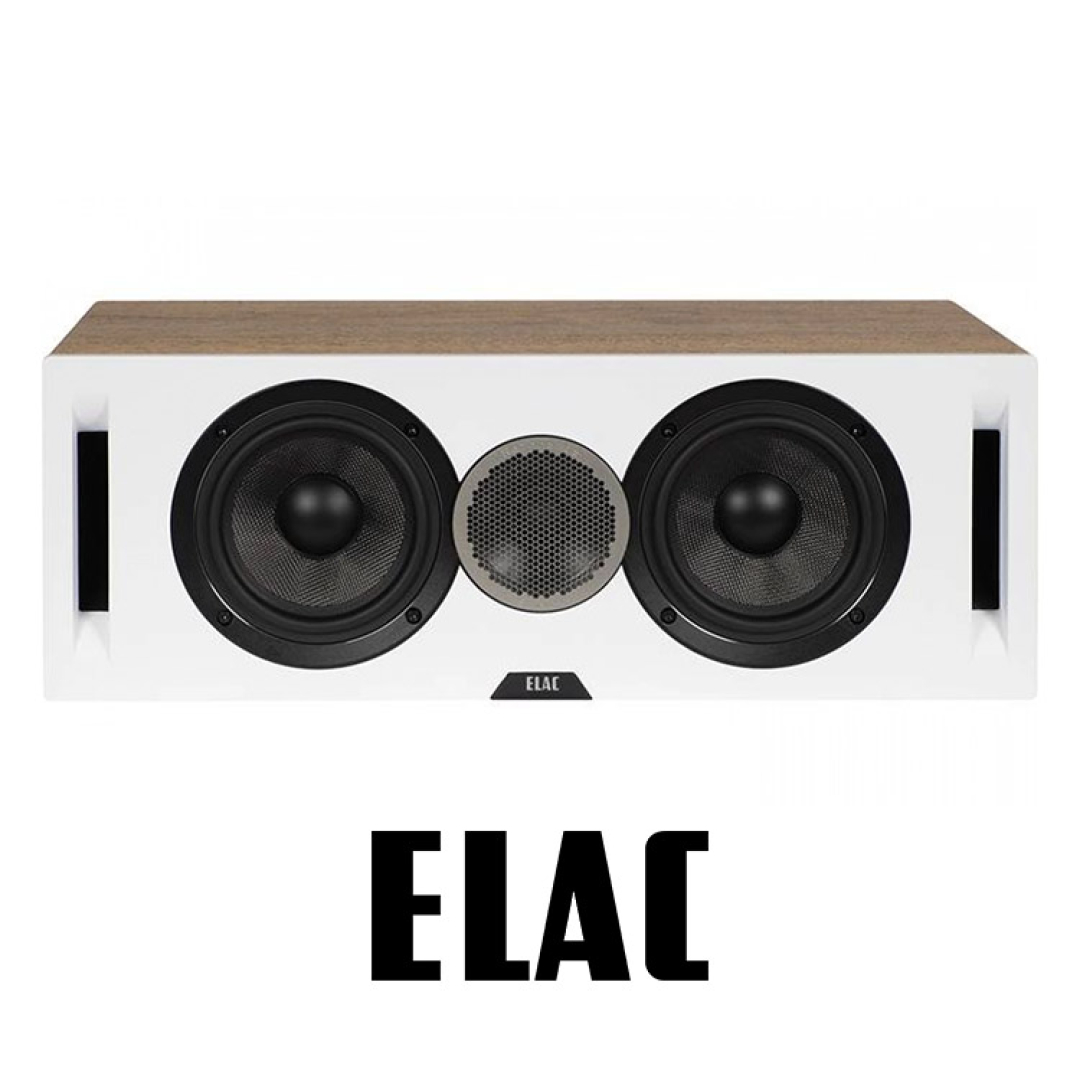

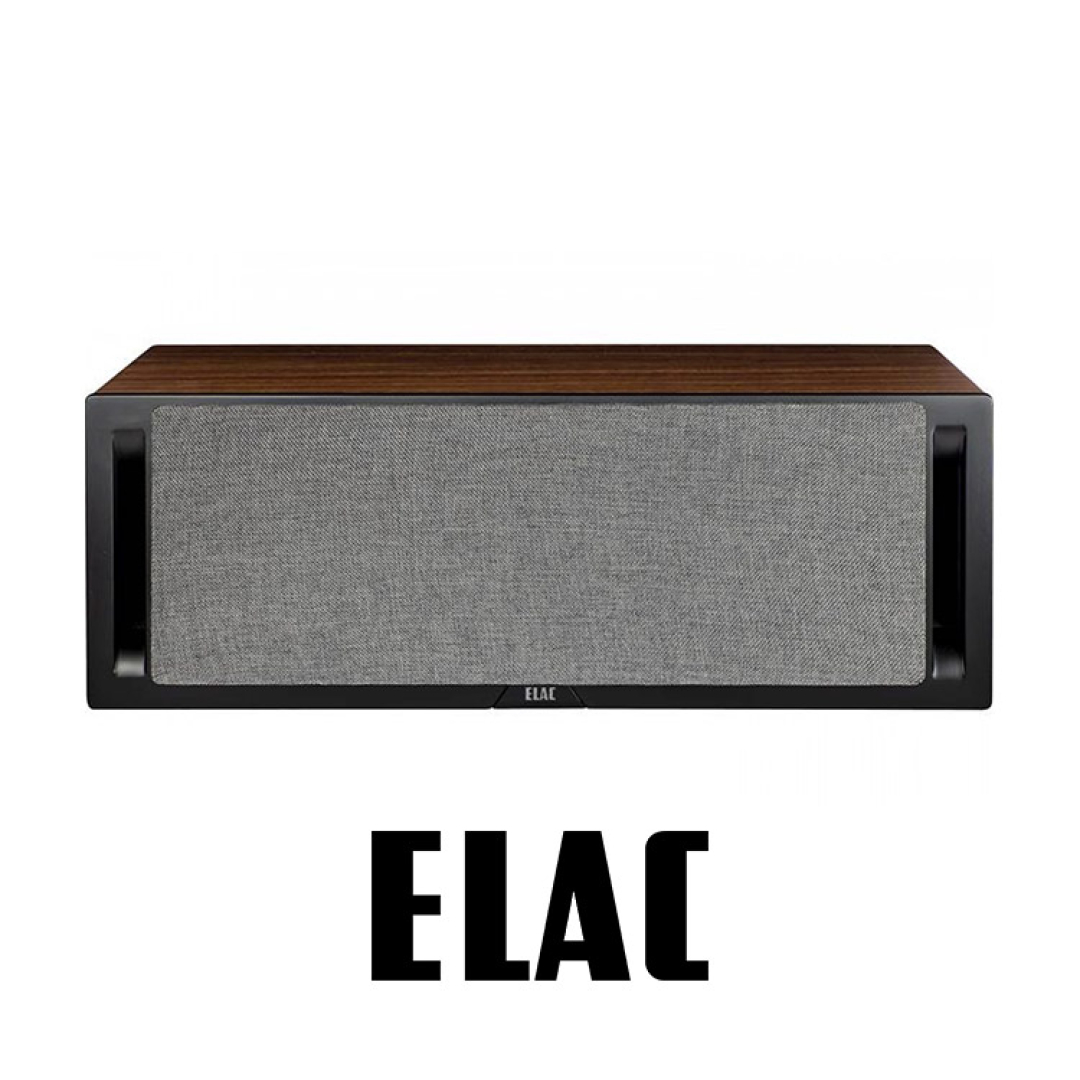

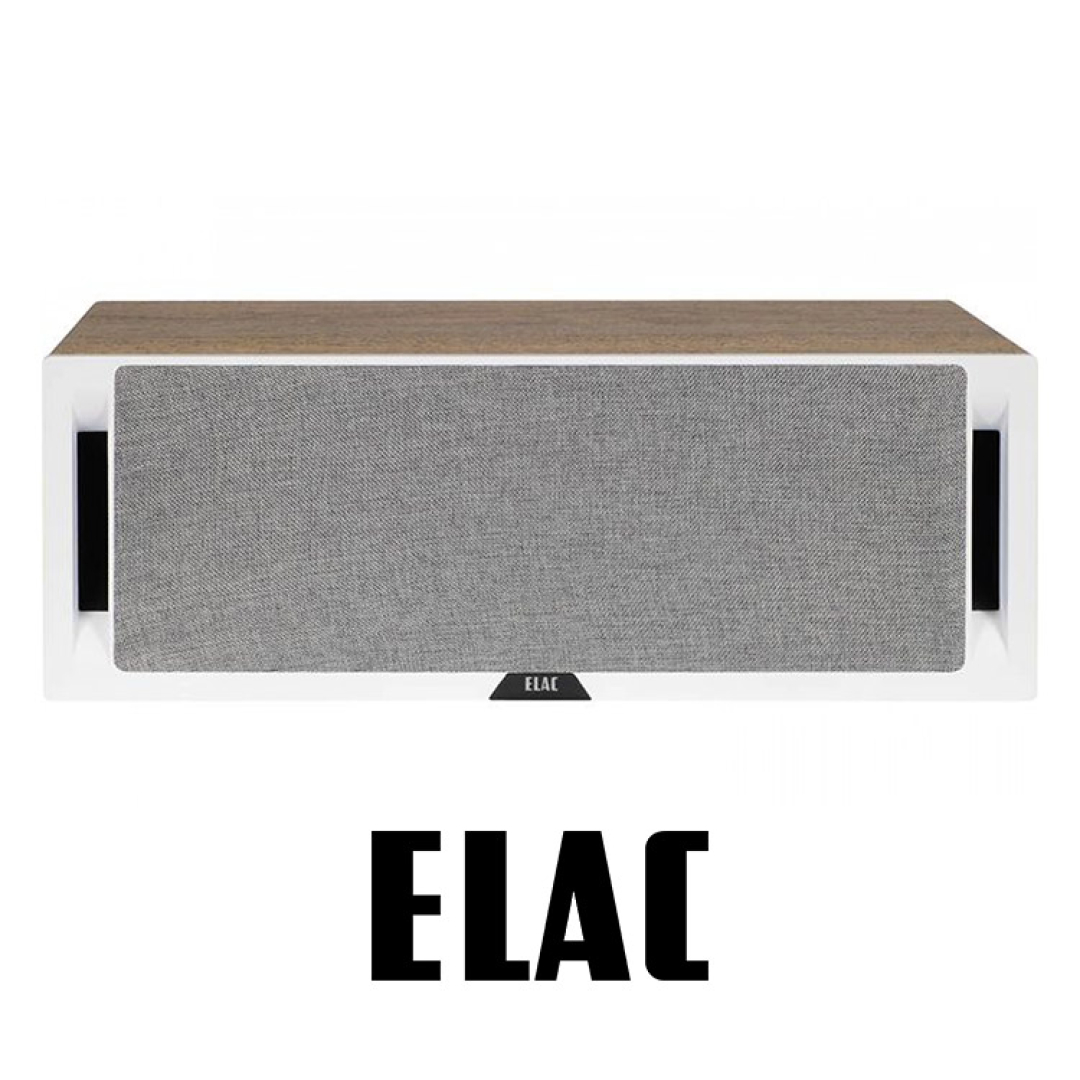

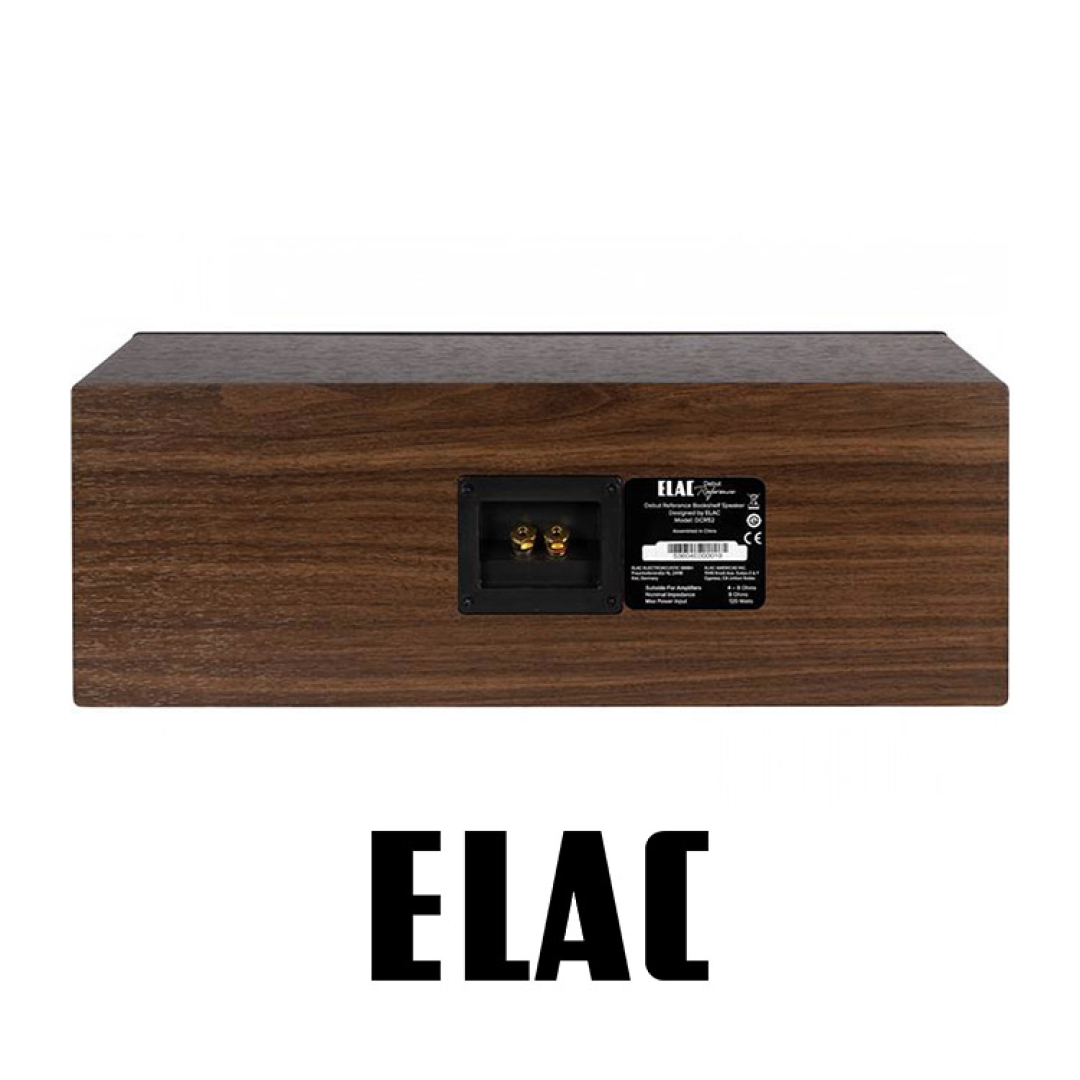

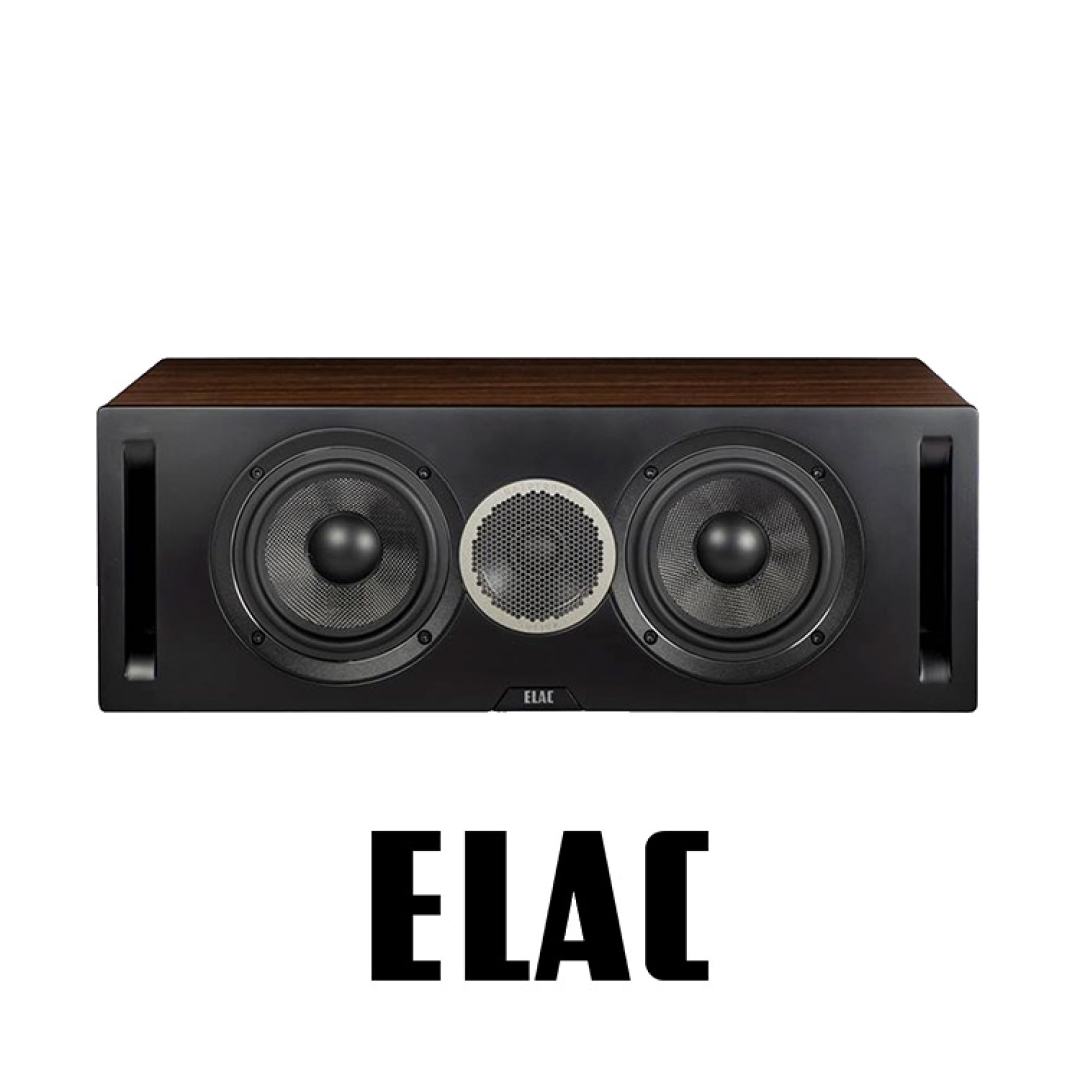

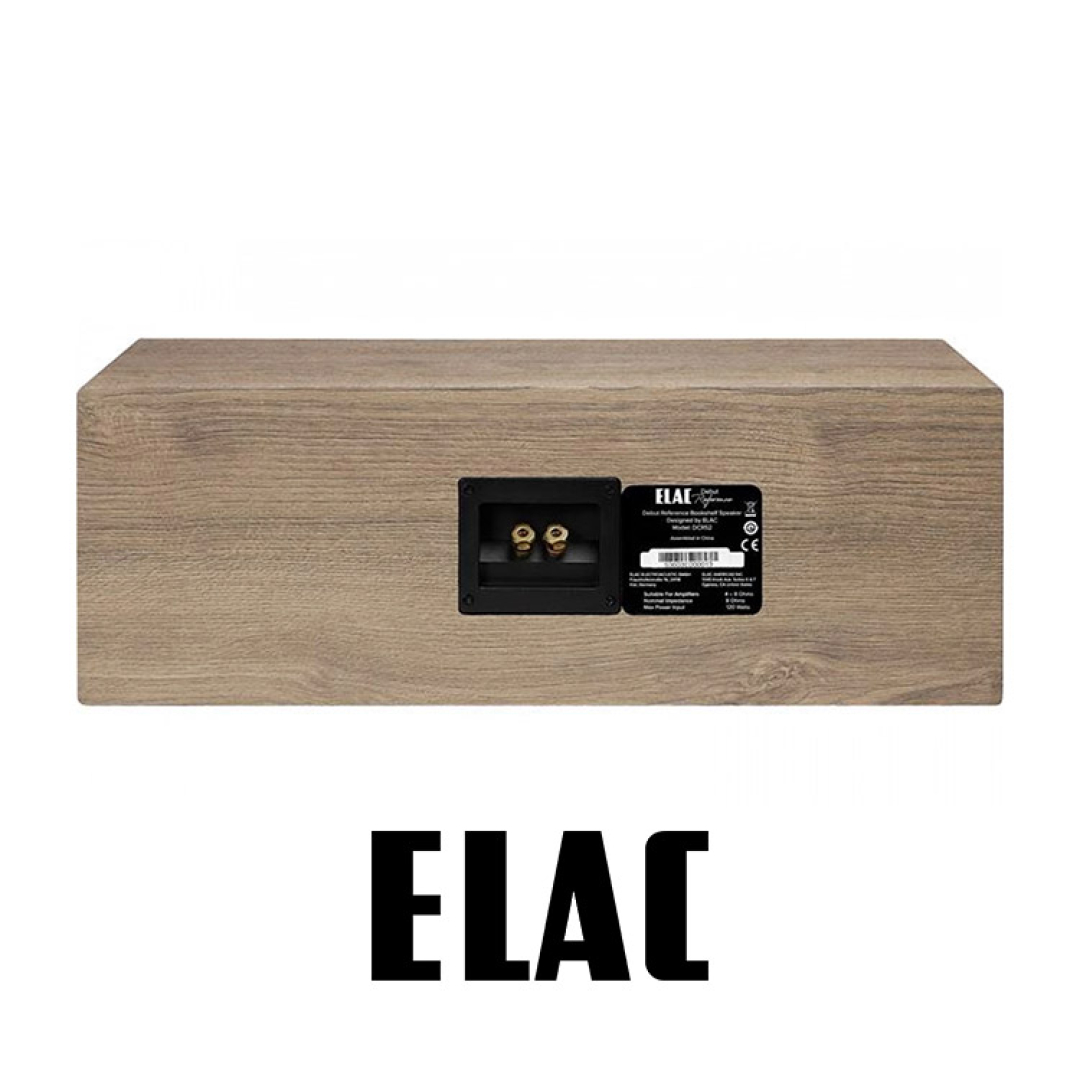

The ELAC Debut Reference DCR52 is a sophisticated center speaker focused on high clarity and accurate dialogue for home theater systems. The newly developed waveguide technology and the more open front grille design, along with the 1" soft dome tweeter, provide higher precision and wide area dispersion in high frequencies. This allows every detail to be heard clearly, from the faintest whisper to the loudest explosion. Additionally, specially designed aramid fiber woofers deliver fast response and powerful bass.
The cabinet structure reinforced with full surround brackets minimizes vibration and prevents coloration, while the dual flared slot port system achieves deeper and more dynamic bass. The DCR52, available in a white front panel with light oak or a black front panel with walnut veneer options, complements any decor, appealing not only to the ear but also to the eye. ELAC further advances the legacy of the Debut series, justifying the "Reference" name for this speaker.
Cast Woofer
Powerful and clear sound production with aramid fiber woofers
Features
Technical Specifications
Cabinet
High treble performance with advanced waveguide and open grille
